Tendon Property

Manages tendon properties and integrates relaxation models.

NODE GRID

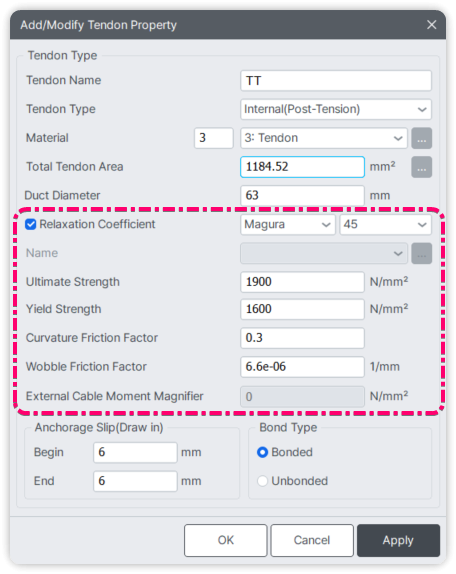

Property highlighted in the box is defined through Relaxation defintion.

Constructor

Tendon.Property(name, type, matID: int, tdn_area, duct_dia, relaxation, ext_mom_mag=0, anch_slip_begin=0, anch_slip_end=0, bond_type: bool=True, id=0)

Creates a tendon property

Parameters

  • name (str): Name for the tendon property.
  • type (int): 1=Internal (Pre-tension) | 2=Internal (Post-tension) | 3=External.
  • matID (int): Steel Material ID.
  • tdn_area (float): Area of tendon.
  • duct_dia (float): Duct diameter.
  • relaxation: Relaxation definition.
  • ext_mom_mag (float, default=0): External moment magnifier.
  • anch_slip_begin (float, default=0): Anchorage slip at begin.
  • anch_slip_end (float, default=0): Anchorage slip at end.
  • bond_type (bool, default=True): Whether the tendon is bonded or unbonded.
  • id (int, default=0): Optional ID for tendon property.

Object Attributes

  • ID: Unique identifier (auto-generated)
  • NAME: Tendon name
  • TYPE: Tendon type (INTERNAL or EXTERNAL)
  • TENS: Tension type (PRE or POST)
  • MAT: Material ID
  • TDN_AREA: Tendon area
  • DUCT_DIA: Duct diameter
  • RELAX: Relaxation object
  • EXT_MOM_MAG: External moment magnitude
  • ANC_SLIP_B: Anchor slip at beginning
  • ANC_SLIP_E: Anchor slip at end
  • BOND_TYP: Bonded (True) or unbonded (False)

Class Attributes

Tendon.Property.properties -> List of all tendon properties defined.

Tendon.Property('TD_Prop',2,1,1700,100,Tendon.Relaxation.Null(1800,1500))
Tendon.Property('TD_Prop 2',1,1,1700,100,Tendon.Relaxation.CEBFIP_2010(0,2,1800,1500))

for prop in Tendon.Property.properties:
    print(f'NAME : {prop.NAME}  | TYPE: {prop.TYPE} {prop.TENS} TENSION ')

# Output:
# NAME : TD_Prop  | TYPE: INTERNAL POST TENSION
# NAME : TD_Prop 2  | TYPE: INTERNAL PRE TENSION

Methods

json

Returns a JSON representation of all Tendon Properties defined in python.

Tendon.Property('TD_Prop',2,1,1700,100,Tendon.Relaxation.Null(1800,1500))
print(Tendon.Property.json())

# Output:
# {'Assign': {1: {'NAME': 'TD_Prop', 'TYPE': 'INTERNAL', 'LT': 'POST', 'MATL': 1, 'AREA': 1700, 'D_AREA': 100, 'ASB': 0, 'ASE': 0, 'bBONDED': True, 'ALPHA': 0, 'RM': 0, 'RV': 0, 'US': 1800, 'YS': 1500, 'FF': 0, 'WF': 0, 'bRELAX': False}}}

create

Sends the current tendon properties defined to the Civil NX using a PUT request.
New properties are created and existing property(same ID) in Civil NX will be updated.

Tendon.Property('TD_Prop',2,1,1700,100,Tendon.Relaxation.Null(1800,1500)) # Assumes Material with ID=1
Tendon.Property.create()

get

Fetches tendon properties from the Civil NX and return the JSON representation.

print(Tendon.Property.get())
# Output:
# {'TDNT': {'1': {'NAME': 'TD_Prop', 'TYPE': 'INTERNAL', 'MATL': 1, 'AREA': 1700, 'D_AREA': 100, 'RM': 0, 'RV': 0, 'US': 1800, 'YS': 1500, 'LT': 'POST', 'ASB': 0, 'ASE': 0, 'bBONDED': True, 'ALPHA': 0, 'bRELAX': False, 'TDMFK': 0, 'FF': 0, 'WF': 0}}}

sync

Retrieves Tendon property data from the Civil NX and rebuilds the internal tendon property list.

Tendon.Property.sync()

delete

Deletes all tendon properties from both Python and Civil NX.

Tendon.Property.delete()

alt text

Relaxation

The Relaxation class contains several code-specific inner classes to define tendon relaxation properties.
Each standard/code has its own constructor parameters and object attributes.

If no relaxation is required, Tendon.Relaxation.Null( ) should be used.

Null - No Relaxation

Null

Constructor

Tendon.Relaxation.Null( ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0)

Parameters

  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default is 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default is 0).

Object Attributes

  • CODE (str): 'No Relaxation'
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
CEB-FIP Code (2010)

CEBFIP_2010

Constructor

Tendon.Relaxation.CEBFIP_2010( rho, rel_class, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0, unint_ang_disp=0)

Parameters

  • rho (float): Relative relaxation loss after 1000 hours.
  • rel_class (int): Relaxation class (1: Slow, 2: Mean, 3: Rapid).
  • ult_st (float): Ultimate strength .
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default: 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default: 0).
  • unint_ang_disp (float, optional): Unintentional angular displacement (default: 0).

Object Attributes

  • CODE (str): 'CEB FIP-2010'
  • RHO (float): Relative relaxation value.
  • CLASS (int): Relaxation class.
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
  • UNINT_AD (float): Unintentional angular displacement.
CEB-FIP Code (1978)

CEBFIP_1978

Constructor

Tendon.Relaxation.CEBFIP_1978( rho, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0, unint_ang_disp=0)

Parameters

  • rho (float): Relative relaxation value.
  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default: 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default: 0).
  • unint_ang_disp (float, optional): Unintentional angular displacement (default: 0).

Object Attributes

  • CODE (str): 'CEB FIP-1978'
  • RHO (float): Relative relaxation value.
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
  • UNINT_AD (float): Unintentional angular displacement.
CEB-FIP Code (1990)

CEBFIP_1990

Constructor

Tendon.Relaxation.CEBFIP_1990( rho, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0, unint_ang_disp=0)

Parameters

  • rho (float): Relative relaxation value.
  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default: 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default: 0).
  • unint_ang_disp (float, optional): Unintentional angular displacement (default: 0).

Object Attributes

  • CODE (str): 'CEB FIP-1990'
  • RHO (float): Relative relaxation value.
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
  • UNINT_AD (float): Unintentional angular displacement.
European

European

Constructor

Tendon.Relaxation.European( rel_class, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0, unint_ang_disp=0)

Parameters

  • rel_class (int): Relaxation class (1: Ordinary, 2: Low, 3: HotRolled).
  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default: 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default: 0).
  • unint_ang_disp (float, optional): Unintentional angular displacement (default: 0).

Object Attributes

  • CODE (str): 'European'
  • CLASS (int): Relaxation class.
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
  • UNINT_AD (float): Unintentional angular displacement.
IRC 18 - 2000

IRC_18

Constructor

Tendon.Relaxation.IRC_18( factor, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0)

Parameters

  • factor (float): Relaxation factor.
  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default: 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default: 0).

Object Attributes

  • CODE (str): 'IRC:18-2000'
  • FACTOR (float): Relaxation factor.
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
IRC 112 - 2020

IRC_112

Constructor

Tendon.Relaxation.IRC_112( factor, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0)

Parameters

  • factor (float): Relaxation factor (code-specific parameter).
  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default is 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default is 0).

Object Attributes

  • CODE (str): 'IRC:112-2011'
  • FACTOR (float): Relaxation factor.
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.
Magura et al. 1964

Magura

Constructor

Tendon.Relaxation.Magura( factor, ult_st, yield_st, curv_fric_fac=0, wob_fric_fac=0)

Parameters

  • factor (int): Relaxation factor; must be either 10 or 45. If not, defaults to 45.
  • ult_st (float): Ultimate strength.
  • yield_st (float): Yield strength.
  • curv_fric_fac (float, optional): Curvature friction factor (default is 0).
  • wob_fric_fac (float, optional): Wobble friction factor (default is 0).

Object Attributes

  • CODE (str): 'Magura'
  • FACTOR (int): Relaxation factor (either 10 or 45).
  • ULT_ST (float): Ultimate strength.
  • YIELD_ST (float): Yield strength.
  • CURV_FF (float): Curvature friction factor.
  • WOBBLE_FF (float): Wobble friction factor.

alt text

Examples

from midas_civil import *

Material.STEEL('TD_steel','IS(S)','E450')
Tendon.Property('TD_Prop',2,1,1700,100,Tendon.Relaxation.Null(1800,1500))
Tendon.Property('TD_Prop 2',1,1,1700,100,Tendon.Relaxation.CEBFIP_2010(0,2,1800,1500))

Model.create()
