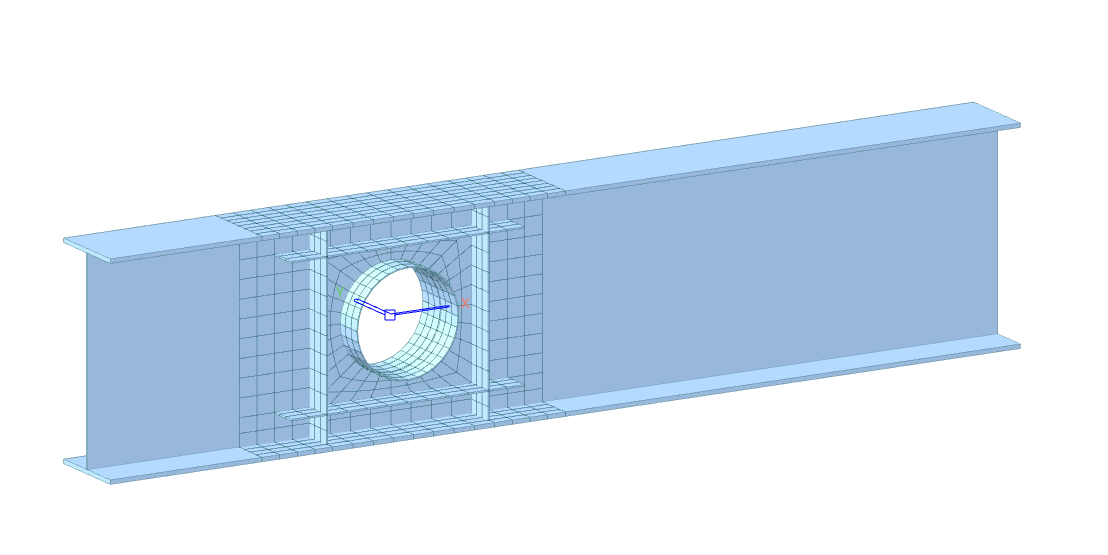

from midas_civil import *
import math
MAPI_KEY('xxxxxxxxxxxxxx')
MAPI_BASEURL.autoURL()
circle_points = []
radius = 0.5
dx = 0.3 # Margin from circle to rect section
dz = 0.2
I_Sect_H = 2
I_Sect_B = 0.8 #EVEN
I_Sect_TW = 0.02
I_Sect_TF = 0.04
PLATE_LEN = 3
dx2 = PLATE_LEN*0.5-radius-dx
dy2=I_Sect_B/2 #0.4
dy=0.3 #Stiffner
margin = 0.35 # Longitudinal stiffner length
n_div = 8
n=4*n_div
#-------------------------
rdz = radius+dz
rdx = radius+dx
rdz2 = (I_Sect_H-I_Sect_TF)*0.5
dz2 = rdz2-rdz
rdx2 = rdx+dx2
Model.units('N','M')
#--------------- M A T E R I A L ------------------
Material.STEEL('Frame','ASTM(S)','A36')
#--------------- S E C T I O N & T H I C K N E S S ------------------
Section.DBUSER('I sect','H',[I_Sect_H,I_Sect_B,I_Sect_TW,I_Sect_TF])
Thickness(0.01,id=1)
Thickness(0.015,id=2)
Thickness(I_Sect_TW,id=3)
Thickness(I_Sect_TF,id=4)
#--------------- G E O M E T R Y ------------------
for i in range(n):
theta = 360/n*i*math.pi/180
circle_points.append((radius*math.sin(theta),0,radius*math.cos(theta)))
for pt in circle_points:
Node(pt[0],pt[1],pt[2],group='Circle_I')
Node.SE((0,0,rdz),(rdx,0,rdz),int(n_div*0.5),group='Circle_O')
Node.SE((rdx,0,rdz),(rdx,0,-rdz),n_div,group='Circle_O')
Node.SE((rdx,0,-rdz),(-rdx,0,-rdz),n_div,group='Circle_O')
Node.SE((-rdx,0,-rdz),(-rdx,0,rdz),n_div,group='Circle_O')
Node.SE((-rdx,0,rdz),(0,0,rdz),int(n_div*0.5),group='Circle_O')
# Centre Plate
Element.Plate.loftGroups(['Circle_I','Circle_O'],nDiv=3,bClose=True,sect=3)
def extrude_Y_symm(nodeList,dir,ndiv,bClose,type,sect):
Element.Plate.extrude(nodeList,(dir[0],dir[1],dir[2]),ndiv,bClose,type,sect=sect)
Element.Plate.extrude(nodeList,(dir[0],-dir[1],dir[2]),ndiv,bClose,type,sect=sect)
# Extrude top and bottom edges along z
Element.Plate.extrude(Model.Select.Line((-rdx,0,rdz),(rdx,0,rdz)),(0,0,dz2),10*dz2,False,'ID',sect=3)
Element.Plate.extrude(Model.Select.Line((-rdx,0,-rdz),(rdx,0,-rdz)),(0,0,-dz2),10*dz2,False,'ID',sect=3)
# Extrude side edges along X
Element.Plate.extrude(Model.Select.Line((-rdx,0,rdz2),(-rdx,0,-rdz2)),(-dx2,0,0),4,False,'ID',sect=3)
Element.Plate.extrude(Model.Select.Line((rdx,0,rdz2),(rdx,0,-rdz2)),(dx2,0,0),4,False,'ID',sect=3)
# y extrusions for Circle edge
extrude_Y_symm(nodesInGroup('Circle_I'),(0,dy,0),3,True,'ID',1)
# Extrude side edges along Y
extrude_Y_symm(Model.Select.Line((-rdx,0,rdz2),(-rdx,0,-rdz2)),(0,dy,0),10*dy,False,'ID',sect=2)
extrude_Y_symm(Model.Select.Line((rdx,0,rdz2),(rdx,0,-rdz2)),(0,dy,0),10*dy,False,'ID',sect=2)
# Extrude inner top and bottom edges along Y
extrude_Y_symm(Model.Select.Line((-rdx-margin,0,rdz),(rdx+margin,0,rdz)),(0,dy,0),10*dy,False,'ID',sect=2)
extrude_Y_symm(Model.Select.Line((-rdx-margin,0,-rdz),(rdx+margin,0,-rdz)),(0,dy,0),10*dy,False,'ID',sect=2)
# Extrude outer top and bottom edges along Y
extrude_Y_symm(Model.Select.Line((-rdx2,0,rdz2),(rdx2,0,rdz2)),(0,dy2,0),10*dy2,False,'ID',sect=4)
extrude_Y_symm(Model.Select.Line((-rdx2,0,-rdz2),(rdx2,0,-rdz2)),(0,dy2,0),10*dy2,False,'ID',sect=4)
# Beam elements
Element.Beam.SE((-rdx2,0,0),(-3,0,0),group='Beam')
Element.Beam.SE((rdx2,0,0),(6,0,0),group='Beam')
#--------------- B O U N D A R Y ------------------
slave_select = Model.Select.Box((rdx2,-dy2,-rdz2),(rdx2,dy2,rdz2))
master_1 = Node(rdx2,0,0).ID
slave_1 = [x for x in slave_select if x != master_1]
slave_select = Model.Select.Box((-rdx2,-dy2,-rdz2),(-rdx2,dy2,rdz2))
master_2 = Node(-rdx2,0,0).ID
slave_2 = [x for x in slave_select if x != master_2]
Boundary.RigidLink(master_1,slave_1)
Boundary.RigidLink(master_2,slave_2)
#Support
Boundary.Support([Node(-3,0,0).ID,Node(6,0,0).ID],"1111000")
#--------------- S T A T I C L O A D I N G ------------------
Load.Nodal(Model.Select.Line((-rdx2,0,rdz2),(rdx2,0,rdz2)),'Load','',FZ=-9375)
Load.Beam(elemsInGroup('Beam'),'Load','',-50000)
Model.create()
