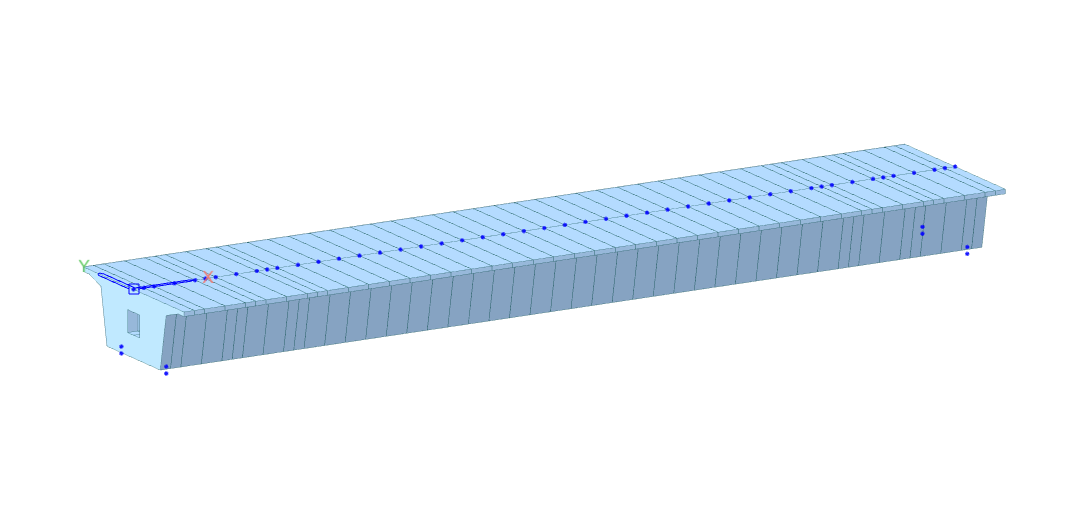

from midas_civil import *
MAPI_KEY('xxxxxxxxxxxxxx')
MAPI_BASEURL.autoURL()
import math
# ==============================================================================
# 1. GEOMETRY INPUTS
# ==============================================================================
length_bridge = 40
sup_sec_length = 3
sup_sec_location = 0.5
tapperd_lenght = 3
bearing_left_loc = 0.5
bearing_right_loc = 0.5
bearing_th = 0.3
# ==============================================================================
# 2. MATERIAL DEFINITIONS
# ==============================================================================
Model.units("KN", "M")
# Base Materials
Material.CONC("M50", "IRC(RC)", "M50")
Material.STEEL.User("Tendon", 1.9884e7, 0.3, 80.05, 0, 1.2e-5)
# Time-Dependent Properties
CreepShrinkage.IRC("M50", code_year=2020, fck=50000, notional_size=1, relative_humidity=70, age_shrinkage=3, type_cement='NR', id=1)
CompStrength.IRC("M50", code_year=2020, fck_delta=60000, cement_type=2)
TDMatLink(1, "M50", "M50")
# ==============================================================================
# 3. SECTION DEFINITIONS
# ==============================================================================
mid_HO1 = 0.2
mid_HO2 = 0.3
mid_HO3 = 2.5
mid_BO2 = 0.5
mid_BO3 = 2.25
Section.PSC.CEL12(
Name="Mid Section", Shape="1CEL", Joint=[1, 0, 0, 1, 0, 1, 0, 1],
HO1=0.2, HO2=0.3, HO3=mid_HO3,
BO1=1.5, BO11=0.5, BO2=mid_BO2, BO3=mid_BO3,
HI1=0.24, HI2=0.26, HI3=2.05, HI31=0.71, HI4=0.2, HI5=0.25,
BI1=2.2, BI11=0.7, BI21=2.2, BI3=1.932, BI31=0.7,
Offset=Offset.CT(), useShear=True, use7Dof=False, id=1)
Section.PSC.CEL12(
Name="Sup Section", Shape="1CEL", Joint=[1, 0, 0, 1, 0, 1, 0, 1],
HO1=0.2, HO2=0.3, HO3=2.5,
BO1=1.5, BO11=0.5, BO2=0.5, BO3=2.25,
HI1=0.44, HI2=0.26, HI3=1.65, HI31=0.71, HI4=0.2, HI5=0.45,
BI1=2, BI11=0.7, BI21=2, BI3=1.732, BI31=0.7,
Offset=Offset.CT(), useShear=True, use7Dof=False, id=2)
Section.PSC.CEL12(
Name="Diaphragm", Shape="1CEL", Joint=[1, 0, 0, 0, 0, 0, 0, 0],
HO1=0.2, HO2=0.3, HO3=2.5,
BO1=1.5, BO11=0.5, BO2=0.5, BO3=2.25,
HI1=1, HI2=0, HI3=1, HI5=1,
BI1=0.5, BI3=0.5,
Offset=Offset.CT(), useShear=True, use7Dof=False, id=3)
Section.Tapered.PSC12CEL(
Name="Mid-Sup", Shape="1CEL", Joint=[1, 0, 0, 1, 0, 1, 0, 1],
HO1_I=0.2, HO2_I=0.3, HO3_I=2.5,
BO1_I=1.5, BO11_I=0.5, BO2_I=0.5, BO3_I=2.25,
HI1_I=0.24, HI2_I=0.26, HI3_I=2.05, HI31_I=0.71, HI4_I=0.2, HI5_I=0.25,
BI1_I=2.2, BI11_I=0.7, BI21_I=2.2, BI3_I=1.932, BI31_I=0.7,
HO1_J=0.2, HO2_J=0.3, HO3_J=2.5,
BO1_J=1.5, BO11_J=0.5, BO2_J=0.5, BO3_J=2.25,
HI1_J=0.44, HI2_J=0.26, HI3_J=1.65, HI31_J=0.71, HI4_J=0.2, HI5_J=0.45,
BI1_J=2, BI11_J=0.7, BI21_J=2, BI3_J=1.732, BI31_J=0.7,
Offset=Offset.CT(), useShear=True, use7Dof=False, id=4)
Section.Tapered.PSC12CEL(
Name="Sup-Mid", Shape="1CEL", Joint=[1, 0, 0, 1, 0, 1, 0, 1],
HO1_I=0.2, HO2_I=0.3, HO3_I=2.5,
BO1_I=1.5, BO11_I=0.5, BO2_I=0.5, BO3_I=2.25,
HI1_I=0.44, HI2_I=0.26, HI3_I=1.65, HI31_I=0.71, HI4_I=0.2, HI5_I=0.45,
BI1_I=2, BI11_I=0.7, BI21_I=2, BI3_I=1.732, BI31_I=0.7,
HO1_J=0.2, HO2_J=0.3, HO3_J=2.5,
BO1_J=1.5, BO11_J=0.5, BO2_J=0.5, BO3_J=2.25,
HI1_J=0.24, HI2_J=0.26, HI3_J=2.05, HI31_J=0.71, HI4_J=0.2, HI5_J=0.25,
BI1_J=2.2, BI11_J=0.7, BI21_J=2.2, BI3_J=1.932, BI31_J=0.7,
Offset=Offset.CT(), useShear=True, use7Dof=False, id=5)
# ==============================================================================
# 4. GROUP DEFINITIONS
# ==============================================================================
Group.Structure("Girder")
Group.Boundary(["Rigid Link", "Elastic Link", "Support"])
Group.Load(["Self Weight", "SIDL", "Prestress Load"])
# ==============================================================================
# 5. NODE & ELEMENT GENERATION
# ==============================================================================
total_h = mid_HO1 + mid_HO2 + mid_HO3
bearing_loc_y = round(mid_BO3 * 0.84, 2)
# Calculate boundaries of each section based on the input
boundary_points = [
0,
sup_sec_location,
sup_sec_location + sup_sec_length,
sup_sec_location + sup_sec_length + tapperd_lenght,
length_bridge - (sup_sec_location + sup_sec_length + tapperd_lenght),
length_bridge - (sup_sec_location + sup_sec_length),
length_bridge - sup_sec_location,
length_bridge
]
# Combine 1m intervals with boundary points and remove duplicates
node_set = set([float(x) for x in range(length_bridge + 1)])
node_set.update(boundary_points)
all_node = sorted(list(node_set))
# Element Generation mapping specific sections based on location
for i in range(len(all_node) - 1):
x1 = all_node[i]
x2 = all_node[i+1]
mid_x = (x1 + x2) / 2.0
# Assign section ID based on the midpoint
if mid_x <= boundary_points[1]:
sect_id = 3 # Diaphragm
elif mid_x <= boundary_points[2]:
sect_id = 2 # Support Section
elif mid_x <= boundary_points[3]:
sect_id = 5 # Sup-Mid Tapered (Left side)
elif mid_x <= boundary_points[4]:
sect_id = 1 # Mid Section
elif mid_x <= boundary_points[5]:
sect_id = 4 # Mid-Sup Tapered (Right side)
elif mid_x <= boundary_points[6]:
sect_id = 2 # Support Section
else:
sect_id = 3 # Diaphragm
st_node = [x1, 0, 0]
end_node = [x2, 0, 0]
Element.Beam.SE(st_node, end_node, mat=1, sect=sect_id, group="Girder")
mid_sup_id = list(Model.Select.Element(secID=4))
sup_mid_id = list(Model.Select.Element(secID=5))
Section.TaperedGroup("Sup-Mid", sup_mid_id, "LINEAR", id=1)
Section.TaperedGroup("Mid-Sup", mid_sup_id, "LINEAR", id=2)
# ==============================================================================
# 6. BOUNDARY CONDITIONS
# ==============================================================================
right_x = length_bridge - bearing_right_loc
z_top = -total_h
z_bot = -total_h - bearing_th
el_top_nodes = []
el_bot_nodes = []
sl1 = []
sl2 = []
# Create nodes, assign groups, and categorize IDs
for x in (bearing_left_loc, right_x):
for y in (bearing_loc_y, -bearing_loc_y):
top_id = Node(x, y, z_top, group="Girder").ID
bot_id = Node(x, y, z_bot, group="Girder").ID
el_top_nodes.append(top_id)
el_bot_nodes.append(bot_id)
if x == bearing_left_loc:
sl1.append(top_id)
else:
sl2.append(top_id)
# Create Master Nodes
Rg1 = Node(bearing_left_loc, 0, 0).ID
Rg2 = Node(right_x, 0, 0).ID
# Apply Boundary Conditions
Boundary.Support(el_bot_nodes, "fix", "Support")
Boundary.RigidLink(Rg1, sl1, "Rigid Link")
Boundary.RigidLink(Rg2, sl2, "Rigid Link")
for top_id, bot_id in zip(el_top_nodes, el_bot_nodes):
Boundary.ElasticLink(
top_id, bot_id, "Elastic Link", "GEN",
1000000, 1000000, 1000, 10, 10, 10 )
# ==============================================================================
# 7. LOAD DEFINITIONS
# ==============================================================================
# Load Cases
Load_Case("CS", "SW", "SIDL-WC", "SIDL-CB", "Prestress Load")
Load_Case("T", "Temperature Rise", "Temperature Fail")
Load_Case("TPG", "Positive Temp. Grad", "Negative Temp. Grad")
# Static Loads
Load.SW("SW", "Z", -1, "Self Weight")
all_elm_id = elemsInGroup("Girder")
Load.Beam(all_elm_id, "SIDL-WC", "SIDL", -16.5)
Load.Beam(all_elm_id, "SIDL-CB", "SIDL", -7.5, use_ecc=True, eccn_type=1, ieccn=4.25)
Load.Beam(all_elm_id, "SIDL-CB", "SIDL", -7.5, use_ecc=True, eccn_type=1, ieccn=-4.25)
# Temperature Loads
Temperature.Element(all_elm_id, 12.5, "Temperature Rise")
Temperature.Element(all_elm_id, -12.5, "Temperature Fail")
Temperature.BeamSection(
element=all_elm_id, lcname="Positive Temp. Grad",
section_type='PSC', type='Element', ref_pos='Top',
b_value=0, elast=0, thermal=0,
value=[
[0, 0.15, 17.8, 4 ],
[0.15, 0.4, 4, 0 ],
[2.85, 3, 0, 2.1],
]
)
Temperature.BeamSection(
element=all_elm_id, lcname="Negative Temp. Grad",
section_type='PSC', type='Element', ref_pos='Top',
b_value=0, elast=0, thermal=0,
value=[
[0, 0.25, -10.3, -0.7],
[0.25, 0.5, -0.7, 0 ],
[2.5, 2.75, 0, -0.8],
]
)
# ==============================================================================
# 8. PRESTRESS LOADS & TENDON PROFILES
# ==============================================================================
relaxation = Tendon.Relaxation.IRC_112(
factor=2, ult_st=1.86326e6, yield_st=1.56906e6,
curv_fric_fac=0.3, wob_fric_fac=0.0066
)
Tendon.Property(
name="Tendon", type=2, matID=2, tdn_area=0.00266, duct_dia=0.11,
relaxation=relaxation, ext_mom_mag=0, anch_slip_begin=0.006,
anch_slip_end=0.006, bond_type=True
)
# Profile Generation Settings
num_tendons = 6
num_points = 21
num_pairs = num_tendons // 2
Y_cord = (mid_BO2 + mid_HO3) * 0.8
angle_rad = math.atan(mid_BO2 / mid_HO3)
angle_deg = math.degrees(angle_rad)
for p in range(num_pairs):
t = p / (num_pairs - 1) if num_pairs > 1 else 0
f0 = 0.33 + t * (0.45 - 0.33)
f1 = 0.60 + t * (0.70 - 0.50)
f2 = 0.85 + t * (0.95 - 0.85)
z_start = -total_h * f0
z_quarter = -total_h * f1
z_mid = -total_h * f2
C = z_mid
B = (-z_start + 16 * z_quarter - 15 * z_mid) / 3
A = (4 * z_start - 16 * z_quarter + 12 * z_mid) / 3
xyzr_cord_left = []
xyzr_cord_right = []
for i in range(num_points):
x = (length_bridge * i) / (num_points - 1)
u = (x - length_bridge / 2) / (length_bridge / 2)
z = A * (u**4) + B * (u**2) + C
xyzr_cord_left.append([x, Y_cord, z])
xyzr_cord_right.append([x, -Y_cord, z])
tendon_idx = p + 1
Tendon.Profile(
f"Tendon_L_{tendon_idx}", 1, 0, all_elm_id, "3D", "ROUND", 0, 0, 0, "AUTO",
ref_axis="ELEMENT", prof_xyzR=xyzr_cord_left, x_axis_rot_ang=-angle_deg
)
Tendon.Profile(
f"Tendon_R_{tendon_idx}", 1, 0, all_elm_id, "3D", "ROUND", 0, 0, 0, "AUTO",
ref_axis="ELEMENT", prof_xyzR=xyzr_cord_right, x_axis_rot_ang=angle_deg
)
for i in range(1, num_pairs + 1):
Tendon.Prestress(f"Tendon_L_{i}", "Prestress Load", "Prestress Load", "STRESS", 'BOTH', 1395000, 1395000)
Tendon.Prestress(f"Tendon_R_{i}", "Prestress Load", "Prestress Load", "STRESS", 'BOTH', 1395000, 1395000)
# ==============================================================================
# 9. MOVING LOADS
# ==============================================================================
MovingLoad.Code("INDIA")
MovingLoad.Vehicle.India("Class A", "IRC", "Class A")
MovingLoad.Vehicle.India("Class 70R", "IRC", "Class 70R")
mv_ecc = [2.45, -1.05, 1.155]
for i in range(len(mv_ecc) - 1):
MovingLoad.LineLane.India(f"Lane_{i+1}", mv_ecc[i], 1.8, all_elm_id, 0, length_bridge)
MovingLoad.LineLane.India("Lane_3", mv_ecc[2], 1.93, all_elm_id, 0, length_bridge)
MovingLoad.Case.India("Case 1", 2, 1, False, False, [[1, 0, 2, "Class A", ['Lane_1', "Lane_2"]]])
MovingLoad.Case.India("Case 2", 2, 2, False, False, [[1, 0, 1, "Class 70R", ["Lane_3"]]])
# ==============================================================================
# 10. CONSTRUCTION STAGES
# ==============================================================================
CS.STAGE("CS1", 7, "Girder", 28, "A", ["Rigid Link", "Elastic Link", "Support"], "DEFORMED", "A", ["Self Weight"])
CS.STAGE("CS2", 14, l_group=["Prestress Load"], l_type="A")
CS.STAGE("CS3", 1000, l_group=["SIDL"])
# Initialize Model Creation
Model.create()
