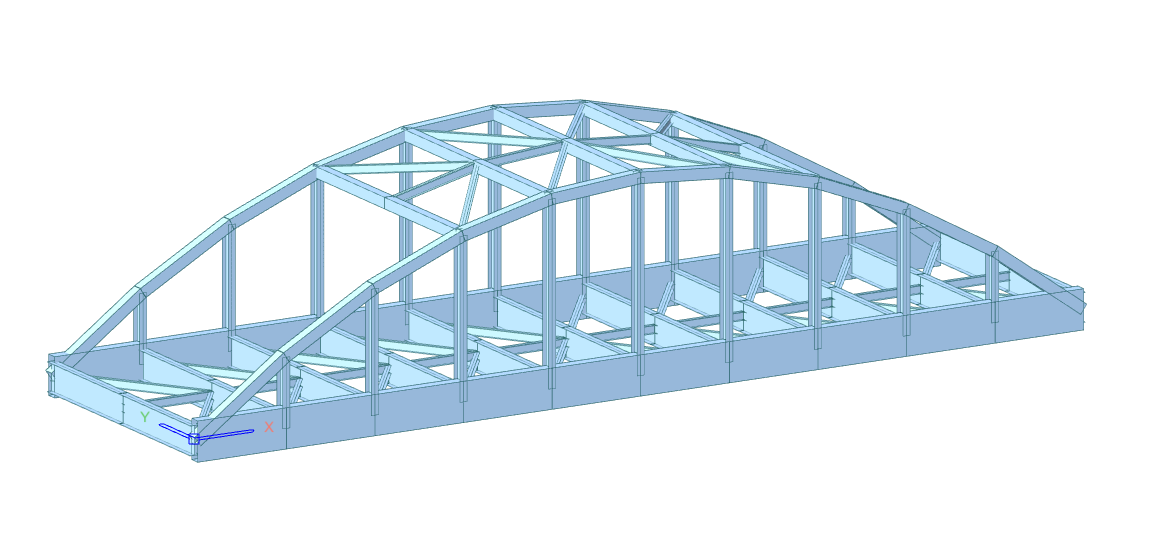

from midas_civil import *
MAPI_KEY('xxxxxxxxxxxxxx')
MAPI_BASEURL.autoURL()
Model.units('KN','M')
#--------------- M A T E R I A L ------------------
Material.STEEL('A36','ASTM(S)','A36',id=1)
Material.STEEL('A572-50','ASTM(S)','A572-50',id=2)
#--------------- S E C T I O N ------------------
Section.DBUSER('Main Girder','B',[2.1,0.6,0.01,0.01],id=1)
Section.DBUSER('Cross Beam','H',[1.54,0.5,0.014,0.027],id=2)
Section.DBUSER('Arch Rib','B',[0.6,0.6,0.016,0.014],id=3)
Section.DBUSER('Hanger','H',[0.6,0.4,0.012,0.016],id=4)
Section.DBUSER('Strut','B',[0.6,0.5,0.01,0.014],id=5)
Section.DBUSER('Bracing','H',[0.43,0.26,0.015,0.025],id=6)
#--------------- G E O M E T R Y ------------------
SPAN_BRIDGE = 50
HEIGHT_BRIDGE = 10
WIDTH_BRIDGE = 14
DIVISION_BRIDGE = 10 #EVEN
NUM_STRUT = 4 #Even
Element.Beam.SE((0,0,0),(SPAN_BRIDGE,0,0),DIVISION_BRIDGE,2,1,group='#MainGirder_R')
Element.Beam.SE((0,WIDTH_BRIDGE,0),(SPAN_BRIDGE,WIDTH_BRIDGE,0),DIVISION_BRIDGE,2,1,group='#MainGirder_L')
Element.Beam.PLine([(0,0,0),(SPAN_BRIDGE*0.5,0,HEIGHT_BRIDGE),(SPAN_BRIDGE,0,0)],DIVISION_BRIDGE,2,div_axis='X',mat=2,sect=3,group='#Arch_R')
Element.Beam.PLine([(0,WIDTH_BRIDGE,0),(SPAN_BRIDGE*0.5,WIDTH_BRIDGE,HEIGHT_BRIDGE),(SPAN_BRIDGE,WIDTH_BRIDGE,0)],DIVISION_BRIDGE,2,div_axis='X',mat=2,sect=3,group='#Arch_L')
for i in range(DIVISION_BRIDGE+1):
Element.Beam.SE(nodesInGroup('#MainGirder_R',output='NODE')[i],nodesInGroup('#MainGirder_L',output='NODE')[i],2,2,2,group=[f'#Cross Beam_{i+1}','Cross Beam'])
for i in range(DIVISION_BRIDGE-1):
Element.Beam(nodesInGroup('#Arch_R')[i+1],nodesInGroup('#MainGirder_R')[i+1],2,4,90,group=['#Hanger_R'])
Element.Beam(nodesInGroup('#Arch_L')[i+1],nodesInGroup('#MainGirder_L')[i+1],2,4,90,group=['#Hanger_L'])
idx = (DIVISION_BRIDGE-NUM_STRUT)//3+1
for i in range(NUM_STRUT+1):
Element.Beam.SE(nodesInGroup('#Arch_R',output='NODE')[idx+i],nodesInGroup('#Arch_L',output='NODE')[idx+i],2,1,5,group=[f'#Strut_{i+1}','Strut'])
for i in range(NUM_STRUT):
Element.Beam(nodesInGroup(f'#Strut_{i+1}')[1],nodesInGroup(f'#Strut_{i+2}')[1],1,6)
for i in range(NUM_STRUT//2):
Element.Beam(nodesInGroup(f'#Strut_{i+1}')[0],nodesInGroup(f'#Strut_{i+2}')[1],1,6)
Element.Beam(nodesInGroup(f'#Strut_{i+1}')[2],nodesInGroup(f'#Strut_{i+2}')[1],1,6)
Element.Beam(nodesInGroup(f'#Strut_{NUM_STRUT-i+1}')[0],nodesInGroup(f'#Strut_{NUM_STRUT-i}')[1],1,6)
Element.Beam(nodesInGroup(f'#Strut_{NUM_STRUT-i+1}')[2],nodesInGroup(f'#Strut_{NUM_STRUT-i}')[1],1,6)
for i in range(DIVISION_BRIDGE):
Element.Beam(nodesInGroup(f'#Cross Beam_{i+1}')[1],nodesInGroup(f'#Cross Beam_{i+2}')[1],1,6)
for i in range(DIVISION_BRIDGE//2):
Element.Beam(nodesInGroup(f'#Cross Beam_{i+1}')[0],nodesInGroup(f'#Cross Beam_{i+2}')[1],1,6)
Element.Beam(nodesInGroup(f'#Cross Beam_{i+1}')[2],nodesInGroup(f'#Cross Beam_{i+2}')[1],1,6)
Element.Beam(nodesInGroup(f'#Cross Beam_{DIVISION_BRIDGE-i+1}')[0],nodesInGroup(f'#Cross Beam_{DIVISION_BRIDGE-i}')[1],1,6)
Element.Beam(nodesInGroup(f'#Cross Beam_{DIVISION_BRIDGE-i+1}')[2],nodesInGroup(f'#Cross Beam_{DIVISION_BRIDGE-i}')[1],1,6)
#--------------- S U P P O R T ------------------
Boundary.Support(Node(0,0,0).ID,"1110000")
Boundary.Support(Node(SPAN_BRIDGE,0,0).ID,"0110000")
Boundary.Support(Node(0,WIDTH_BRIDGE,0).ID,"1010000")
Boundary.Support(Node(SPAN_BRIDGE,WIDTH_BRIDGE,0).ID,"0010000")
for elmID in elemsInGroup(['#Hanger_R','#Hanger_L']):
Boundary.BeamEndRelease(elmID,Mz_I=0,Mz_J=0)
for elm in Element.elements:
if elm.SECT == 6 :
Boundary.BeamEndRelease(elm.ID,My_I=0,Mz_I=0,My_J=0,Mz_J=0)
for i in range(DIVISION_BRIDGE+1):
_CrossBeam = elemsInGroup(f'#Cross Beam_{i+1}')
Boundary.BeamEndRelease(_CrossBeam[0],My_I=0,Mz_I=0)
Boundary.BeamEndRelease(_CrossBeam[1],My_J=0,Mz_J=0)
#--------------- S T A T I C L O A D I N G ------------------
Load.Beam(elemsInGroup(['#MainGirder_R','#MainGirder_L']),'Dead Load','',-90,'GZ')
Load.Beam(elemsInGroup(['#MainGirder_R','#MainGirder_L']),'Side Walk Load','',-6,'GZ')
Model.create()
